Concrete is exceptionally strong under compression but weak under tension: its tensile strength is only approximately 10% of its compressive strength. Reinforcement addresses this fundamental limitation by embedding materials within the concrete matrix that carry tensile, flexural, and shear forces. The result is reinforced concrete, a composite that can handle the full range of structural loads that plain concrete cannot. Understanding reinforcement types, when they are required, and how they are correctly installed is essential for anyone involved in concrete construction in 2025.
What Are the Main Types of Concrete Reinforcement?

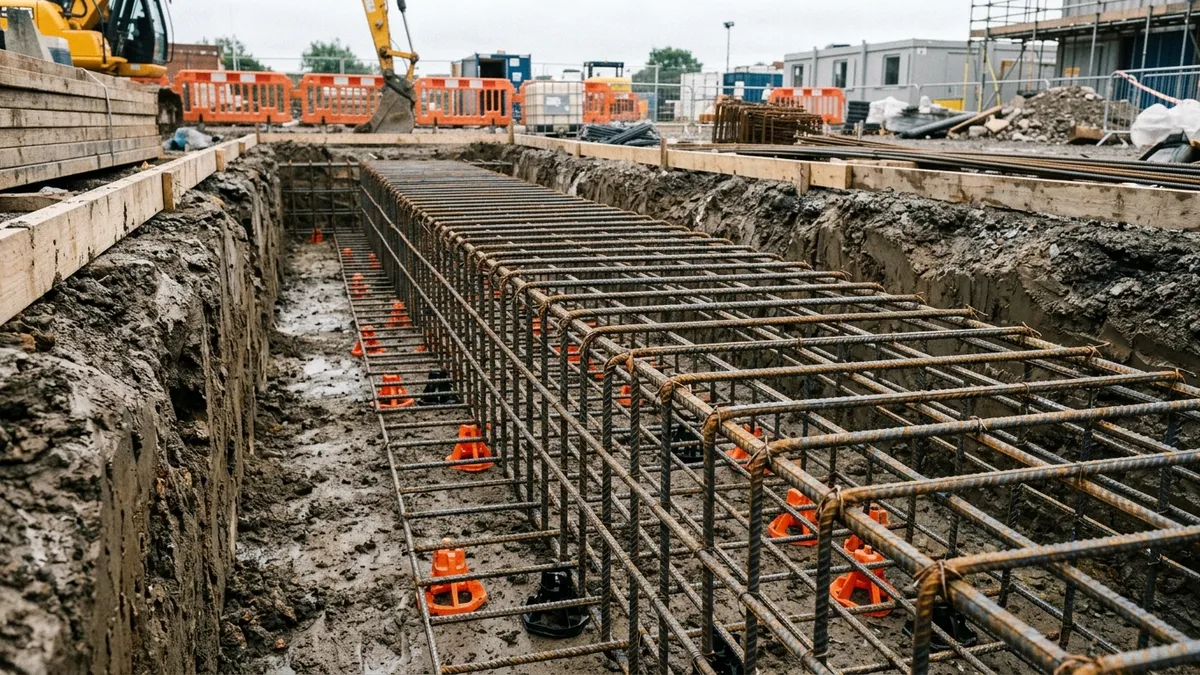

Steel reinforcement bars (rebar): The most established reinforcement method. High-yield deformed steel bars (grade B500B to BS 4449) provide tensile capacity where it is most needed: in beams, columns, foundations, and any structural element subject to bending. The deformations on the bar surface create mechanical bond with the surrounding concrete, transferring force between the two materials. Minimum cover requirements, the distance between the bar surface and the concrete face, protect rebar from corrosion. UK standards specify cover based on exposure class: typically 25 to 50mm for most applications, with higher cover for aggressive environments.
Steel fabric mesh (welded wire fabric): Pre-fabricated grids of steel wire used in slabs, floors, and roads. Standard mesh types (A142, A193, A252, A393) vary in bar spacing and diameter, providing different reinforcement ratios. A142 mesh is common for domestic slabs and driveways; A252 and A393 suit higher-load commercial floors and external hardstandings. Fabric is faster to place than individual bars and provides consistent reinforcement distribution in flat elements.

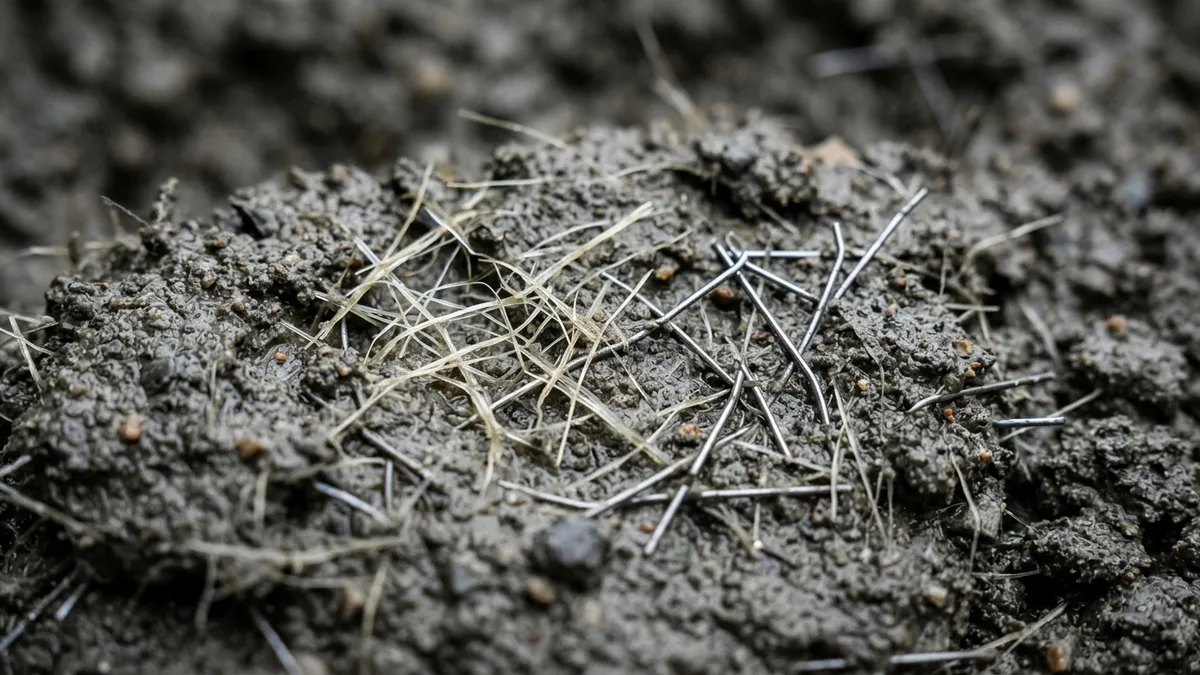

Fibre reinforcement: Synthetic polypropylene fibres, steel fibres, glass fibres, and basalt fibres can be mixed into the concrete at the batching stage, distributing reinforcement throughout the entire cross-section rather than at specific locations. Micro fibres control plastic shrinkage cracking in domestic slabs; macro fibres are engineered for commercial and industrial applications including warehouse floors, airport taxiways, and roadways. Procon 24/7's fibre-reinforced concrete service provides steel and synthetic fibre mixes for industrial floors, warehouse slabs, and external hardstandings.
Carbon fibre reinforced polymer (CFRP) and FRP: Composite reinforcement materials, carbon fibre, glass fibre, or basalt fibre in resin matrices, provide high tensile strength without the corrosion vulnerability of steel. Used in structures with aggressive chemical exposure (marine environments, water treatment, road bridges subject to de-icing salts) and increasingly for structural strengthening and repair of existing concrete. Higher material cost is offset by reduced cover requirements and elimination of future corrosion remediation.
Post-tensioning and pre-tensioning: High-strength steel tendons placed in ducts within the concrete (post-tensioning) or tensioned before casting (pre-tensioning) create compressive pre-stress that counteracts in-service tensile forces. Used for long-span slabs, bridges, and any structure where deflection control or crack elimination is required. Requires specialist engineering design and installation.
When Is Reinforcement Required in UK Concrete Construction?
Not every concrete element requires reinforcement. The decision depends on structural demands, exposure conditions, and regulatory requirements. Under current UK Building Regulations and BS EN 1992 (Eurocode 2), reinforcement is mandatory for:
- All suspended concrete floors and roofs
- Retaining walls over 600mm in height
- Foundations in high-shrink-swell clay soils
- Any structural element subject to tensile stress or bending
- Concrete in XS (marine), XD (de-icing salts), and XA (chemical attack) exposure classes
- Elements where crack width must be controlled to a defined limit
For domestic concrete applications, reinforcement decisions often come down to performance versus cost. An unreinforced driveway slab may survive for 10 to 15 years before major cracking; a reinforced slab correctly specified to C25 with A142 mesh can last 30 to 50 years. The upfront reinforcement cost, typically 15 to 30% of the concrete element cost, frequently represents a strong economic case over the structure's design life.
For commercial concrete projects, a structural engineer's specification takes precedence. Always obtain engineering input before placing structural reinforced concrete.
Reinforced Concrete in Rail and Highways: Large-Scale Pours at Night
Some of the most demanding reinforced concrete work in the UK happens at night, away from public sight. Rail possessions give engineers a limited window, typically 6 to 10 hours, to complete trackbed repairs, bridge deck repairs, or platform edgebeam replacements. Rail sector concrete pours must reach structural strength before the line reopens, which is why rapid-set and tightly specified reinforced mixes are standard. PTS-carded Procon 24/7 drivers operate within possession limits, delivering volumetric concrete that meets Network Rail specification requirements.
On the strategic road network, motorway lane closures and contraflows create a similarly restricted window for concrete work. Highways concrete pours, including carriageway slab replacements, bridge joint repairs, and hardstanding bases for gantry supports, are scheduled overnight to minimise disruption. The combination of C35 or higher reinforced mix, rapid early strength, and lane-rental cost pressure makes specification and delivery efficiency critical. Procon 24/7's volumetric fleet delivers precisely what is needed, when it is needed, without over-ordering waste that would fall to the contractor's account.
What Are the Best Practices for Installing Concrete Reinforcement?
Cover and spacers: Minimum cover must be maintained throughout the pour. Use proprietary plastic spacers or bar chairs: never use broken bricks, pebbles, or timber offcuts as cover indicators. Spacers should be at centres not exceeding 40 times the bar diameter. Inadequate cover is the leading cause of reinforcement corrosion and subsequent concrete failure.
Lap lengths and continuity: Where bars must be joined, lap lengths must meet design requirements, typically a minimum of 30 to 40 bar diameters for tension laps in standard concrete. Laps in adjacent bars should be staggered, not aligned at the same cross-section, to avoid creating a plane of weakness.
Placement and fixing: Bars must be correctly positioned and secured before concrete is placed. Use wire ties at intersections to prevent displacement during the pour and vibration. For mesh in slabs, ensure the mesh is at the correct depth: top mesh for cantilever elements, bottom mesh (or both layers for two-way spanning slabs) for conventional loading.
Concrete placement around reinforcement: Use concrete with adequate workability to flow around reinforcement without requiring excessive vibration. For tightly reinforced sections, self-compacting concrete may be appropriate. Vibrators must not be used to move reinforcement: vibration should consolidate concrete without displacing bars. For pump applications on reinforced concrete pours, Procon 24/7's boom pump and line pump services provide controlled placement.
Curing: Reinforced concrete requires the same diligent curing as plain concrete, and for structural elements, the consequences of poor curing are more severe. Minimum 7-day moist curing prevents surface cracking and ensures the concrete achieves its design strength before loading. See our guide on cold weather concreting for the specific challenges of curing reinforced concrete in winter.
How Does Reinforcement Choice Affect Sustainability?
Steel reinforcement has a significant embodied carbon footprint, but its contribution to structural longevity offsets this in lifecycle assessments. Structures that last 100 years require no replacement, whilst unreinforced structures requiring major repairs or demolition at 20 to 30 years consume far more total resources.
Fibre reinforcement can reduce overall steel content for many slab applications, and recycled steel fibres are increasingly available. For projects with environmental certification requirements, see our guide on eco-friendly concrete alternatives. Our concrete supply across Yorkshire and the North West includes supplementary cementitious material (SCM) blends that reduce embodied carbon without compromising structural performance.
Use our concrete calculator to estimate volumes accurately: over-ordering results in wasted embodied carbon as well as material cost. For mix specification guidance, see our full guide on choosing the right concrete.
Frequently Asked Questions About Concrete Reinforcement
What reinforcement does a domestic driveway need?

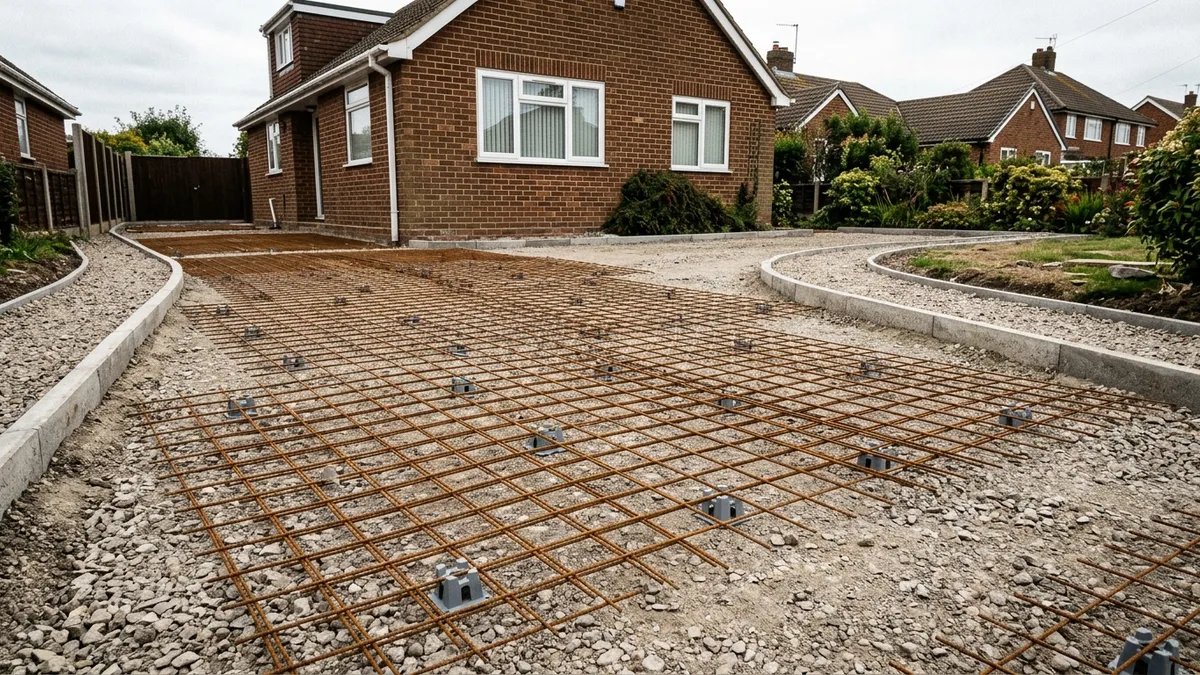

A domestic driveway subject to standard car traffic typically uses A142 welded steel mesh (200mm centres, 6mm diameter wire) positioned in the lower third of the slab. Alternatively, polypropylene or steel fibre reinforcement can replace mesh for driveways, particularly where rebar placement logistics are difficult. C25 air-entrained concrete is the correct specification.
What is the minimum concrete cover over reinforcement?
Minimum cover under BS EN 1992 depends on exposure class and structural class. For most domestic foundations (exposure class XC2), 35 to 40mm nominal cover is typical. For exposed external concrete (XC3/XC4), 40 to 45mm. Marine and de-icing salt environments require 50mm and above. Always refer to your structural engineer's specification: cover is a primary factor in long-term durability.
Can fibre reinforcement replace steel mesh in a concrete slab?
Yes, in many applications. Fibre-reinforced concrete is commonly used to replace mesh in ground-supported industrial and commercial slabs, reducing labour and placement time. The fibre dosage and type must be engineered for the specific application: a structural engineer should confirm equivalence with the equivalent steel mesh specification.
How do you prevent reinforcement corrosion in concrete?
Adequate concrete cover is the primary defence: it provides the physical barrier and alkaline chemical environment that passivates steel. Low permeability concrete (low water-cement ratio, well-cured) slows the ingress of water and chlorides that eventually depassivate steel. Epoxy-coated or stainless steel bars are used where standard cover is insufficient, in very thin sections or extremely aggressive environments.
